AT24C08C-SSHM-T摘要

AT24C08C芯片是一个8KB的串行EEPROM，采用I2C（2线）串行接口。该设备被组织为1024x 8的一个块，并被优化用于消费者、工业和汽车应用中，在这些应用中，可靠和可靠的非易失性存储器是必不可少的。EEPROM有多种节省空间的封装选项。

AT24C08C-SSHM-T附加功能

1024 x 8（8 Kbit）

2线串行接口，I2C兼容

400 kHz（1.7V）和1 MHz（>2.5V）时钟兼容性

支持总线上最多2个设备

自动定时擦除和写入周期（最多5毫秒）

低功耗

读取电流0.4毫安（典型值），1毫安（最大值）

写入电流2毫安（典型值），3毫安（最大值）

备用电流6 uA（最大值）

硬件写保护引脚

超过100万个擦除/写入周期

数据保留期>100年

提供扩展温度范围（AEC-Q100中定义的1、2和3级）

1级温度范围：-40°C至125°C

2级温度范围：-40°C至105°C

3级温度范围：-40°C至85°C

适合汽车应用

工厂编程可用

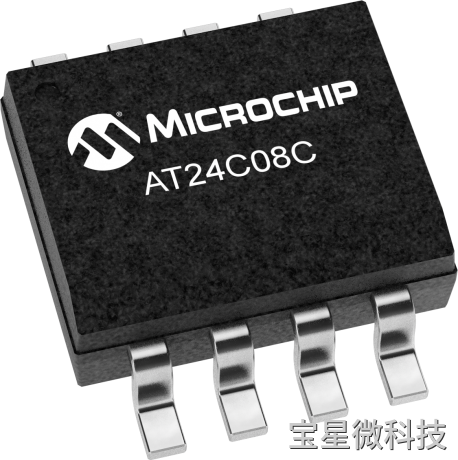

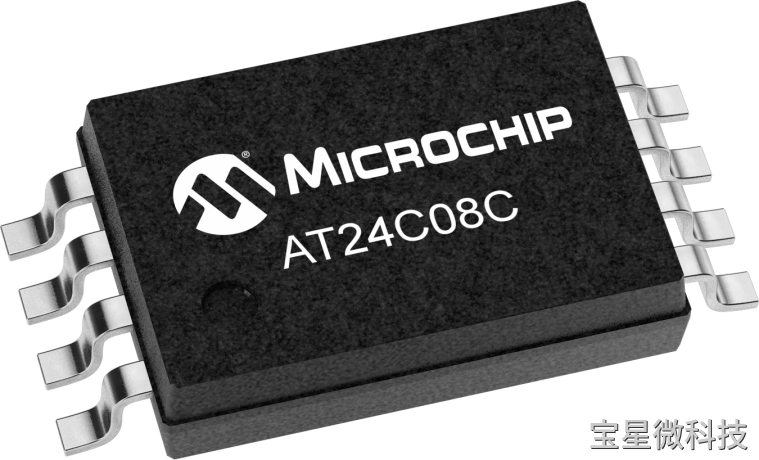

AT24C08C-SSHM-T提供8导PDIP、8导JEDEC SOIC、8导TSSOP、8-pad UDFN、5导SOT2 3和8球VFBGA

Summary

The Microchip AT24C08C is an 8 Kb Serial EEPROM utilizing an I2C (2-wire) serial interface. The device is organized as one block of 1,024 x 8 and is optimized for use in consumer, industrial, and automotive applications where reliable and dependable nonvolatile memory storage is essential. The EEPROM is available in a variety of space-saving packaging options.

Additional Features

1024 x 8 (8 Kbit)

2-Wire Serial Interface, I2C Compatible

400 kHz (1.7V) and 1 MHz (>2.5V) clock compatibility

Supports up to 2 devices on the bus

Self-Timed Erase and Write Cycles (5 ms max.)

Low Power Consumption

Read current 0.4 mA (Typ), 1 mA (Max)

Write current 2 mA (Typ), 3 mA (Max)

Standby current 6 uA (Max)

Hardware Write-Protect Pin

More than 1 million erase/write cycles

Data retention > 100 years

Extended Temperature Ranges Available (Grade 1, 2, and 3 as defined in AEC-Q100)

Grade 1 Temperature Range: -40°C to 125°C

Grade 2 Temperature Range: -40°C to 105°C

Grade 3 Temperature Range: -40°C to 85°C

Qualified for Automotive Applications

Factory Programming Available

Available in 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead TSSOP, 8-pad UDFN, 5-lead SOT23, and 8-ball VFBGA
